AC DC Power Supply
An AC/DC power supply is a device that converts alternating current (AC) from the mains electricity into direct current (DC) suitable for electronic devices. Therefore, if AC is the type of power delivered to your house and DC is the type of power you need to charge your phone, you are going to need an AC/DC power supply in order to convert the AC voltage coming in from the power grid to the DC voltage needed to charge your mobile phone's battery.
Benefits of AC DC Power Supply
Reliability and efficiency
DC power supply offer unparalleled reliability and efficiency, making them an ideal choice for critical applications. With fewer components involved, DC power supply have enhanced overall reliability, leading to improved uptime and reduced maintenance costs.
Stability and power quality
The stability and power quality provided by DC power supply are vital for critical systems. DC power supply exhibits constant voltage levels, eliminating issues associated with voltage fluctuations, harmonics, and power factor correction. Moreover, DC power supply offer improved control over voltage regulation and load management, enabling enhanced system performance and protection.
Space and cost savings
DC power supply often require less space and offer cost-saving benefits in industrial applications. This smaller footprint allows for optimized space utilization, especially in applications where space is limited, such as telecom or data centers.
Efficient transmission
AC power supply can be easily transformed to different voltages using transformers, allowing for efficient long-distance transmission with minimal power loss. AC power supply often include built-in safety features such as circuit breakers and fuses, which protect against overloads and electrical faults.
Cost-effective
The infrastructure for AC power supply distribution is well-established and cost-effective, reducing the overall expense of power generation and delivery. AC power supply is compatible with a wide range of appliances and devices, making it a versatile choice for powering various types of equipment.
Why Choose Us
Rich Experience
With more than 10 years of experience in power supply business, and considering that power supply is very important to our equipment,
High-quality products
We founded the "Jiangtek" brand to provide high-quality products at reasonable prices. We hope to be your reliable power supply partner in China.
Excellent Service
We not only get money from you, but also provide top-quality products at reasonable prices and enthusiastic services.
Values
One of our values is "Today's best performance is tomorrow's benchmark".
How AC DC Power Supply Functions
AC voltage of 230V or a different amount depending on the region is applied to the input of an AC DC power supply. Inside the circuitry, the voltage is stepped down to the appropriate AC voltage for the supply rating. This voltage is usually 9V to 24V for most everyday power supplies. The AC voltage is then converted to DC voltage. Linear AC DC power supplies use diodes to convert and switching mode power supplies use transistors. When the voltage is converted to direct voltage it is then smoothed out to remove ripples and regulated. Some supplies use the voltage without regulation. Household appliances such as TVs and personal computers can now use this converted DC power to operate.
The difference between AC and DC power supply lies in the way they provide electricity. Alternating current (AC) power supply refers to electric charges that change direction periodically. The voltage in AC circuits also regularly reverses due to current direction changes. AC power supply is typically used to power office buildings, homes, and more. On the other hand, direct current (DC) power supply provide a constant voltage or current. The current from a DC power supply only flows in one direction. This type of power supply is typically used for small electronics and devices that use a battery.
How is an AC or DC Power Supply Used in Electronics?
An AC or DC power supply is an essential component of any electronic device or appliance. It provides electrical power to run the device or appliance. An AC power supply converts alternating current (AC) from a wall outlet into a voltage or current that the device or appliance can use. A DC power supply, on the other hand, converts direct current (DC) from a battery or other power source into a form the device or appliance can use. Depending on the type of device, either AC or DC power can be used.
What Is The Voltage Of The Ac Dc Power Supply?
The required input voltage operating range for most low or medium power AC DC power supply is standardized throughout the world to 85~264 Vac. There are specifications for different countries, but they are similar enough that the single specification range can meet the needs of most applications.
What Will Happen If You Don’t Use An Ac Dc Power Supply?
The main purpose of using an AC DC power supply is to transform the AC into a DC voltage, and then the DC can then be utilized to power different electrical devices. Without an AC DC power supply, AC cannot be transformed into a stable voltage, which may cause electronic components to be damaged. Moreover, some high AC voltage equipment may malfunction or even explode if not using AC DC power supply properly.
The first step to determine if your power supply is AC or DC is to observe the shape of the waveform. AC waves are represented by a sinusoidal waveform, while DC waves are represented by a straight line. AC waves alternate in direction, while DC waves only flow in one direction.
The second step is to check the voltage rating of the power supply. AC voltage is usually rated between 115 and 240 volts, while DC voltage is usually rated between 1 and 24 volts. It is also important to consider the current rating, as AC and DC supply ratings can be easily confused.
It is also important to consider the type of connector. AC connectors usually have two or three prongs, while DC connectors usually have two or four prongs. The prongs may also be different sizes, depending on the type of power supply. DC connectors may also include a ground wire.
Some power supplies may be labeled with their type. Many power supplies come with a label that clearly states if it is an AC or DC supply. If the power supply does not include a label, you may need to consult the manufacturer’s documentation or website.
How to Choose an AC DC Power Supply
Personal needs
Users should choose an AC-DC power supply based on their specific device requirements, any unique needs, and budget constraints. For instance, higher-performance processors may necessitate power supplies with higher wattage. Considerations such as special size requirements, different connector interfaces, cable design, and aesthetics also play a role in the selection process.
Functionality
Different power supplies offer various functional features. Users should select a power supply based on the requirements of their particular products. For example, protection features like Overcurrent Protection (OCP), Over Temperature Protection (OTP), and Over Voltage Protection (OVP) provide different levels of safeguarding. Other features like uninterrupted power supply (UPS) and power factor correction may also be important considerations.
Power
Each power supply has a specified wattage rating, indicating its maximum power delivery capacity. More complex and high-speed computing systems typically require higher wattage supplies. Users must ensure that the selected power supply can provide sufficient power, often choosing a slightly higher wattage rating than the device's requirements to allow for additional headroom or future upgrades.
Efficiency
Power supplies are rated with efficiency levels such as 80 PLUS Platinum, Gold, Silver, and Bronze, representing their energy efficiency. Higher efficiency ratings indicate lower energy wastage, resulting in lower heat generation and potentially extending the product's lifespan. Conversely, lower efficiency products may waste more energy, generate more heat, and have a shorter lifespan. Users can choose the appropriate efficiency level based on their budget constraints.
Types of AC DC Power Supply
Unregulated power supply
Unregulated power supplies utilize the AC voltage as the input. The AC voltage is applied across the primary terminals of a step down transformer first. The voltage is stepped down and tapped across the secondary terminals. It is now rectified by a bridge rectifier and changed into a corresponding DC voltage. A capacitor then smoothens the output voltage from the bridge rectifier. As the name implies, an unregulated power supply does not feature a regulator on the circuit.
Switching AC DC power supply
Due to advancements in semiconductor technology, with fast switching MOSFETs, problems such as transformer size as well as voltage regulation in linear AC DC transformers can be eliminated. Efficiency is increased and less energy is dissipated in the form of heat. MOSFETS can switch off and switch on very fast even if there are high currents and voltages.
Linear AC DC power supply
This is the simplest AC DC Power Supply design. They have long served as a reliable method of converting the AC power supplied from the grid to the DC power that is utilized by most household appliances.
Capacitive transformerless power supply
Capacitive power supplies, also referred to as capacitive droppers, are a kind of AC DC power supplies that utilizes a capacitors’ capacitive reactance to lower the mains AC voltage. There are many important limitations. The high tolerating voltage needed of the capacitor, together with the capacitor’s high capacitance needed for a given current output, means that this kind of supply is practical only for low energy applications.
The device consists of an electronic circuit with many components such as transformers (used to step the AC Voltage level up or down), rectifiers (used to convert AC Sinewave to pulsating DC wave), filters (used to remove the pulsation from a DC wave and produce a constant current), and regulators (to help maintain the fixed output voltage).
An AC DC power supply can be used to power many types of circuits and components. Different types of circuits and components require different types of power supply. For example, electronic components like transistors, diodes, capacitors, and resistors require DC voltage. On the other hand, motors, transformers, and light bulbs usually require AC voltage. The type of circuit or component will determine the type of power supply that is needed. Therefore, it is important to consider the type of circuit and component when selecting the power supply.
Application of AC DC Power Supply
Industrial
Both low-power and high-power AC DC power supply are used, providing highly reliable and safe operation of industrial machines.
Semiconductor-fabrication equipment
Applications like ion implantation, wire bonders, hardware emulators and more require high-power AC DC power supply.

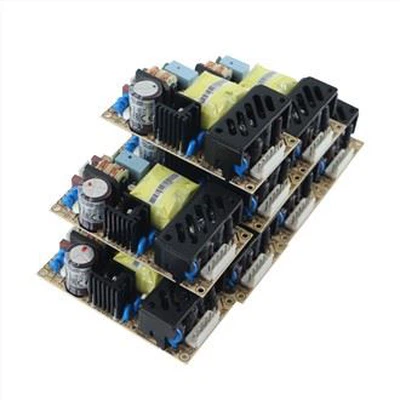

Medical devices
AC DC power supply designed for medical applications, such as diagnostic equipment, personal health devices or other medical machinery, must be compliant to strict safety standards.
Building and factory automation
Compact and robust AC DC power supply are required in these application sectors. Widely used for these applications are DIN rail devices, which can be easily mounted on DIN rail TS-35/7.5 or TS-35/15 rails.
When using an AC DC power supply, it is important to take safety considerations very seriously. It is important to make sure that the power supply is rated for the intended application and that it is properly installed according to the manufacturer’s instructions.
Additionally, it is important to make sure that the power supply is protected from any electrical surges or shorts, and that it is properly secured against any possible sources of damage. It is also important to make sure that the current and voltage rating of the power supply is appropriate for the application in which it is being used.
It is important to check that the power supply is not being exposed to any hazardous environments, such as high temperatures or water. By taking these safety considerations into account, the user can ensure that the power supply is functioning correctly and safely.
Maintenance Tips for AC DC Power Supply
Periodic Inspection
Check electrical connections for corrosion and/or deposits. Keep terminal strips clean to prevent arc over between terminals. Perform visual inspection for any signs of burning or discoloration from heat. Inspect wire connections for tightness. Inspect internal components for mounting tightness.
Cleaning
Unit should be opened up completely. The inside of the power supply should have any foreign material removed using forced air. We do not recommend vacuum cleaning because it very seldom does the job correctly. Power supply enclosure can be cleaned with mild detergent.
FAQ
We're professional ac dc power supply suppliers in China, specialized in providing high quality products and service. If you're going to wholesale high-grade ac dc power supply in stock, welcome to get pricelist and quotation from our factory.
