Introduction:
The 24V Dimmable LED Power Supply is designed to provide efficient and reliable power supply to LED lighting systems. This high-quality product is produced by our experienced team of manufacturers who have years of experience in the industry. We work with top-grade materials and use advanced technology to ensure that our products are of the highest quality. In this article, we will introduce you to some of the key features and benefits of our 24V Dimmable LED Power Supply.
Key Features:
There are a number of key features that set our 24V Dimmable LED Power Supply apart from other power supply products on the market. Here are some of the most important features of this product:
1. Dimmable Control - our 24V Dimmable LED Power Supply has built-in dimming functionality that allows users to adjust the brightness of their LED lighting system. This feature is controlled by a dimmer switch and makes it easy to create customized lighting effects.
2. High Efficiency - our 24V Dimmable LED Power Supply is designed to be highly efficient, which means that it wastes very little electricity when powering your LED lighting system. This is important because it can help to reduce your electricity bills and lower your carbon footprint.
3. Overload Protection - our 24V Dimmable LED Power Supply has built-in overload protection that automatically shuts off power to the system if it detects that the load is too high. This helps to prevent damage to the power supply and other components in your system.
4. Easy Installation - our 24V Dimmable LED Power Supply is designed to be easy to install, with simple wiring and mounting instructions included with the product. This means that you can quickly and easily set up your LED lighting system with confidence.
Benefits:
There are many benefits to using our 24V Dimmable LED Power Supply in your LED lighting system. Here are some of the most important benefits:
1. Energy Efficiency - by using our highly efficient power supply, you can reduce the amount of electricity that your LED lighting system uses. This can help to lower your electricity bills and reduce your carbon footprint.
2. Customizable Lighting - with the built-in dimming functionality of our 24V Dimmable LED Power Supply, you can easily create customized lighting effects and adjust the brightness of your system to suit your needs.
3. Enhanced System Protection - the overload protection feature of our power supply helps to prevent damage to your system, which can increase the lifespan of your LED lighting components.
4. Easy to Install - our 24V Dimmable LED Power Supply is designed to be easy to install, which means that you can quickly and easily set up your LED lighting system with confidence.
Conclusion:
Our 24V Dimmable LED Power Supply is a high-quality product that offers a range of features and benefits that can help to enhance your LED lighting system. With its built-in dimming functionality, high efficiency, overload protection, and ease of installation, this power supply is an excellent choice for merchants looking to provide top-quality products to their customers. Contact us today to learn more about our product and how it can benefit your business.

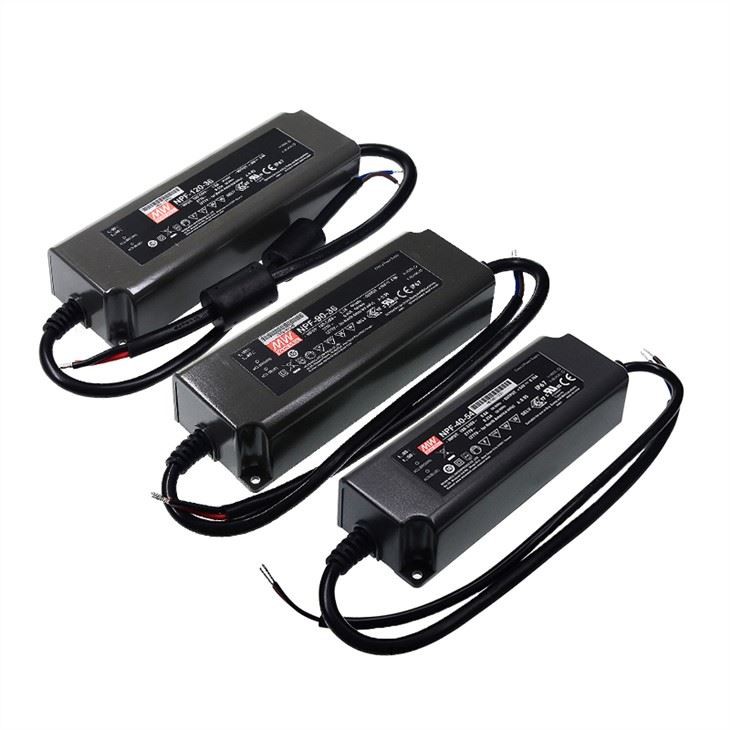

Model:
C.V.+C.C.: NPF-40 / NPF-60 / NPF-90 / NPF-120 / NPF-200
C.C. (3 in 1 Dimming): NPF-40D / NPF-60D / NPF-90D / NPF-120D
Wattage:
40W~200W
Features:
90~305VAC input, built-in active PFC function
Fully isolated plastic case with IP67 level
Class II design, without FG, 24V Dimmable LED Power Supply
No load/standby power consumption<0.15W (<0.5W for D type)
Built-in 3 in 1 dimming function (0~10VDC, PWM signal or resistance, dim-to-off ) for D type
Type "HL" LED drivers for use in Class I, Division 2 hazardous (Classified) location luminaries [NPF-40(D)/-60(D)/-120(D) only]
24V Dimmable LED Power Supply Suitable for LED lighting and moving sign applications
5 years warranty
Q: How to choose a suitable power supply for a charging application?
A: MEAN WELL has launched ENC, HEP-600C, GC, PA, PB, RPB and RCB series for battery charge applications (30~360W). However, if these models still cannot fulfill customer’s requirements, there is an alternative for the purpose. Power supplies with constant current limiting as overload protection are suggested. Charge current varies in battery percentage (full or flat), there is high possibility to trigger overload protection when battery is low, those with overload protection as hiccup or shutdown will stop charging the battery in low battery condition. Yet, using a power supply as charging purpose is considered as over load usage, modification is required. Please contact MEAN WELL for the request.
Q: Why I can not turn on the power supply smoothly when the loads are motors, light bulbs or capacitive loads?
A: If you connect the S.P.S. to motors, light bulbs, or high capacitive loads, you will have a high output surge current when you turn on the S.P.S. and this high surge current will cause failure of start up. We suggest using S.P.S. with constant current limiting protection to deal with these loads.
Q: What are the right product to use when intent to dimmed strip lights?
A: Most strip lights contain a resistor in series, as the result, constant voltage LED driver must be used in this kind of application. We recommend to choose dimmable constant voltage LED drivers such as, PWM/IDLV/ODLV.
Why choose us?
- We are committed to delivering LED driver products that exceed your expectations.
- We sincerely welcome all guests to set up business relationships with us on the basis of mutual benefits.
- Our team is dedicated to meeting all your LED driver needs.
- The team of our company along with the use of cutting-edge technologies delivers impeccable top quality products supremely adored and appreciated by our shoppers worldwide.
- Our products are backed by exceptional customer service and technical support.
- We are sincere to our customers, meet their needs with excellent 24V Dimmable LED Power Supply, solve their problems and serve them wholeheartedly.
- Our LED driver products are backed by a team of experienced professionals.
- We are equipped with serious process discipline and strict process protocols.
- We offer flexible payment terms for our LED driver products.
- Corporate vision is a clear and lasting positioning of the company, including long-term development direction, goals, and self-set social responsibilities and obligations.
